Description:

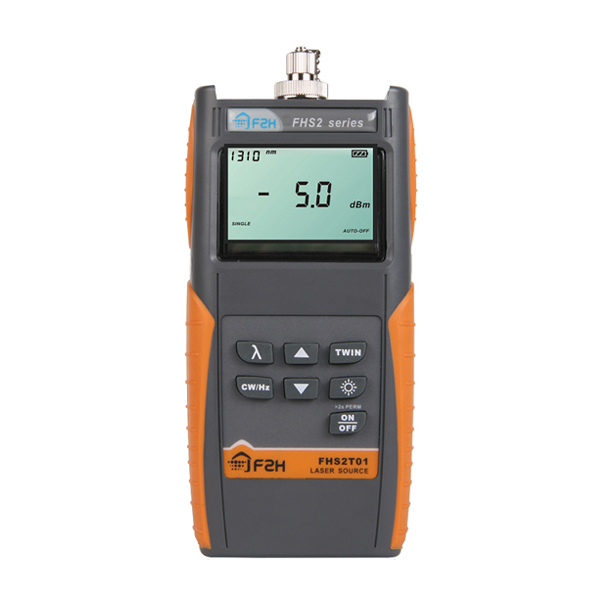

FHS2T Series Optical Laser Source is an advanced version of FHS2 Series of Optical Laser Sources, with one more wavelength for FTTX PON testing.
Auto-wavelength Recognition:
FHS2T Series Optical Laser Source transmits with a wavelength-identification digital encrypted protocol, enabling FHP2 Series Optical Power Meter to automatically use the proper calibration wavelength. This feature reduces the need for communication between the two technicians and decreases the possibility of making mistakes.
FHS2T Series Optical Laser Source offers excellent stability and portability for accurate fiber optic testing.
Single output port provides stable laser power at three wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. A low battery indicator reminds the user of replacing the battery.
Testing Range:
Maximum testing range up to 150km (when using Grandway’s FHS2T Series Optical Laser Source with Granway’s FHP2A04 Optical Power Meter).
Features:
- Easy-to-use, straight forward operation
- Eye-catching handheld appearance
- LCD backlight for easy operation in dark environment
- ±3dB adjustable output
- Rechargeable battery inside
- 1310 & 1490 & 1550nm available for PON testing
- Four wavelengths available for multi-purpose testing
- One-year warranty and recommended calibration interval
FHS2_Series_Laser_Source.pdf [595 KB]
